EZ LSx Power Distribution Module

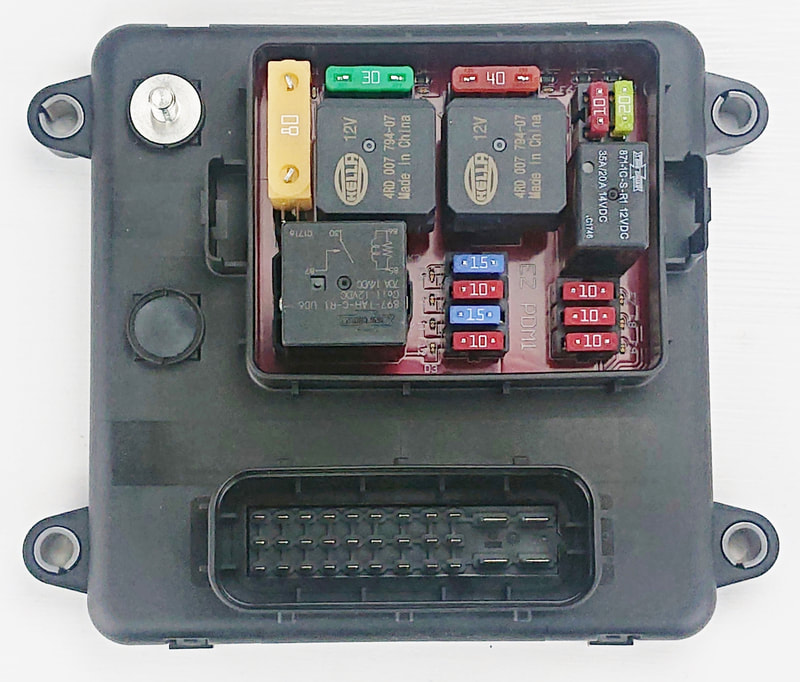

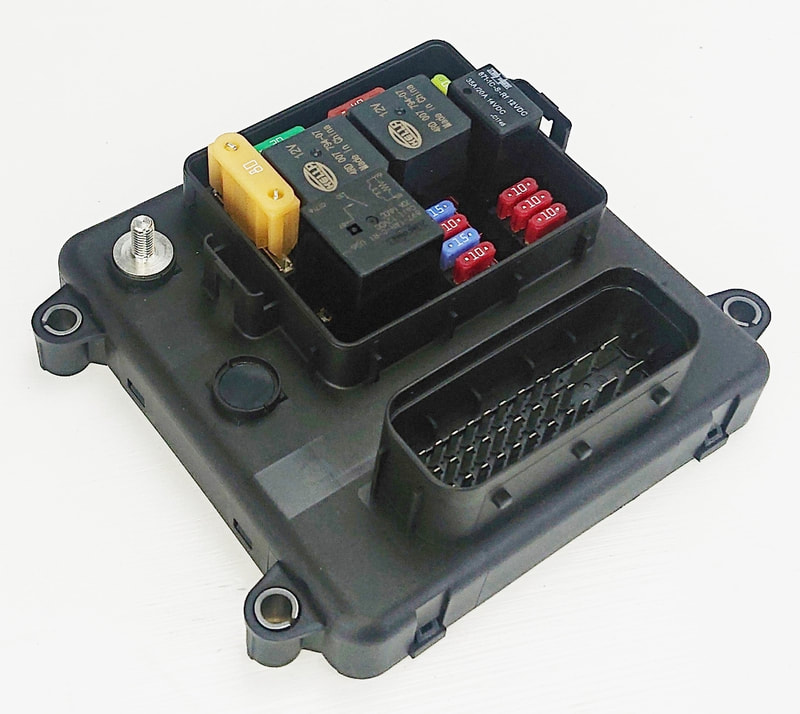

The EZ PDM is a compact and highly functional Power Distribution Module that meets the most demanding needs of the Stand Alone harness industry. .
THE EZ PDM addresses all of your Stand Alone harness needs in one compact unit.
- Built in 80A Maxi Fuse for complete system protection (no more need to worry about a fusible link)
- Three 15A and 20A constant power outputs for ECM memory, TCM memory and OBD II connector power
- Seven 10A and 15A switched power outputs for ECM, coils, injectors and sensors
- Built-in relay for 12V+ power to the fuel pump with 30A fuse protection
- Built-in relay for 12V+ power to the starter solenoid with 40A fuse protection
- Built-in 60A switched power relay
- LED indicators for each fuse light up showing any blown fuses at a glance
- Built-in 1K Ohm, ½ Watt resistor for your tachometer “pull up” signal
- 6mm power input stud allows you to use the same ring terminal and protection boot that you already used for your alternator terminal
- Tool-free service lid mounting
- Operating temperature range -40 °F to +185 °F (-40 °C to +85 °C)
- IP64 (dust-proof/ protection against splashing water)
- Compact size 179 mm x 140 mm x 62 mm

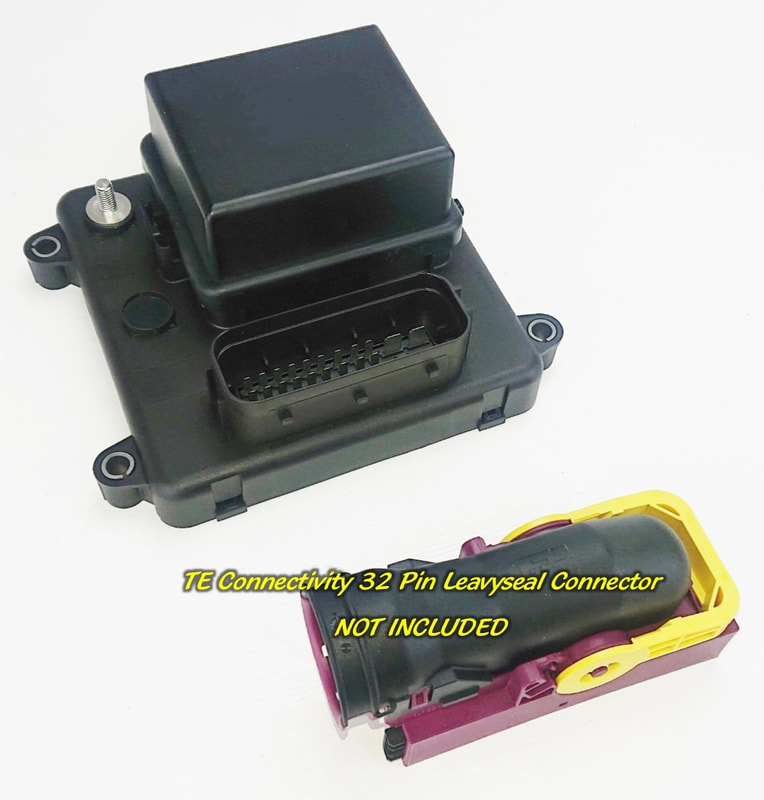

- Simple and secure connection with TE Connectivity 32 Pin Leavyseal connector* (not included)
- …and we saved the best for last! Our exclusive built-in dual function relay. In Gen 3 LS engine applications it is used to convert the brake pedal signal of a normally open switch to mimic the signal of a normally closed switch for torque convertor lock up control. If Gen 4 LS engine applications it uses the Power Train control signal from the ECM to keep the TCM powered up throughout the shutdown process.
*TE Connectivity Mating Connector Part Numbers:
1-2208685-6 is UL rated to V-0 flame rating. 1-1564297-6 is not V-0 rated
1-2208685-6 is UL rated to V-0 flame rating. 1-1564297-6 is not V-0 rated
